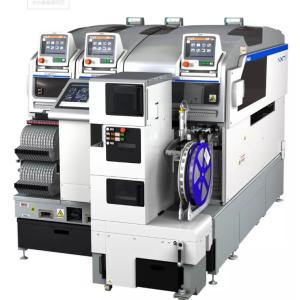

Chip Mounter FUJI Pick And Place Machine NXTⅢ High Speed

    Buy cheap Chip Mounter FUJI Pick And Place Machine NXTⅢ High Speed from wholesalers

    Buy cheap Chip Mounter FUJI Pick And Place Machine NXTⅢ High Speed from wholesalers
    • Buy cheap Chip Mounter FUJI Pick And Place Machine NXTⅢ High Speed from wholesalers

    Chip Mounter FUJI Pick And Place Machine NXTⅢ High Speed

    Ask Lasest Price
    Brand Name : FUJI
    Model Number : NXT Ⅲ
    Payment Terms : T/T
    Delivery Time : 5 weeks
    • Product Details
    • Company Profile

    Chip Mounter FUJI Pick And Place Machine NXTⅢ High Speed

    FUJI Pick and place NXT Ⅲ


    Product description:


    Operators can easily replace the heads

    The original compact, lightweight heads from Fuji can be easily exchanged without tools due to this operators on site can carry out maintenance work.

    2. The machine automatically performs a calibration after the heads have been replaced

    After replacing the head, the operator simply presses the START button. The machine automatically performs a calibration for the head and starts the production.

    3. Reconfigure the machine according to the purpose

    Modules, heads and supply units can be easily exchanged according to part types and production needs. This is a unique mechanism that maximizes production on the given floor space.

    4. Increase the efficiency of production lines at minimum cost

    Increase the capacity in minimum units of 645 mm and support latest placement processes by adding different units. The costs can be reduced considerably, as no new machines have to be added.

    5. Increase efficiency with simple material flow

    Single-sided operation rationalizes and optimizes the material flow, this is reducing the workload on the operator and increases the efficiency of material supply. Dies erhöht die Effizienz bei der Materialversorgung und bei der Durchführung von Wartungsarbeiten.

    Features & parameter:


    Advance chip mounter

    Fast & flexible pick and place machine

    Multi-functional SMT placement

    Fast flexible pick & place machine

    FUJI Smart Factory Platform

    In order to minimize the gap between the plan and reality while maintaining efficient production, optimum production schedules that include the flow of materials need to be implemented and met in actual production. FUJI Smart Factory Platform NXTR is a new platform that is able to link with the integrated production system, Nexim, for efficiently performing a wide range of production.


    Electronic component mounter - NXTR

    The NXTR is a high-end model placement machine that pursues placement quality and productivity through expanding supported panel sizes and part handling capability and enhancing data processing while continuing the popular Fuji concepts -- compact, high area productivity, single side operation, modular, and simple operation.


    The newly developed automatic feeder exchange system frees operators from changeover and supply work. Fuji is paving the way to the future of Smart Factories with NXTR.


    M3 IIIM6 III
    PCB SIZE(L *W)48mm×48mm～250mm×510mm(Dual lane)48mm×48mm～534mm×510mm(Dual lane)
    48mm×48mm～250mm×610mm(Single lane)48mm×48mm～534mm×610mm(Single lane)
    ※The maximum is 280 mm for dual lane handling (W), and the maximum is 280 mm for single lane handling※The maximum is 280 mm for dual lane handling (W), and the maximum is 280 mm for single lane handling
    Component typeMAX20 type (8mm)MAX45 type(8mm)
    PCB loading timeDual lane transport : O sec during continuous operation, dual lane transport: 2.5 sec (transport between modules of M3 III), 3.4 sec (transport between modules of M6 III)
    (Precision)H24:±0.025mm (3σ) cpk≧1.00H24:±0.025mm (3σ) cpk≧1.00
    ※Test result.V12/H12HS:±0.038(±0.050) mm (3σ) cpk≧1.00V12/H12HS:±0.038(±0.050) mm (3σ) cpk≧1.00
    H04S/H04SF:±0.040mm (3σ) cpk≧1.00H08M/H04S/H04SF:±0.040mm (3σ) cpk≧1.00
    H08/H04:±0.050mm (3σ) cpk≧1.00H08/H04/OF:±0.050mm (3σ) cpk≧1.00
    H02/H01/G04:±0.030mm (3σ) cpk≧1.00H02/H01/G04:±0.030mm (3σ) cpk≧1.00
    H02F/G04F:±0.025mm (3σ) cpk≧1.00H02F/G04F:±0.025mm (3σ) cpk≧1.00
    GL:±0.100mm (3σ) cpk≧1.00GL:±0.100mm (3σ) cpk≧1.00
    CapacityH24:35,000 cph & 43,000 cphH24:35,000 cph & 43,000 cph
    ※Test resultsV12:26,000 cphV12:26,000 cph
    H12HS:24,500 cphH12HS:24,500 cph
    H08:11,500 cphH08M:13,000 cph
    H04:6,500 cphH08:11,500 cph
    H04S:9,500 cphH04:6,500 cph
    H04SF:10,500 cphH04S:9,500 cph
    H02:5,500cphH04SF:10,500 cph
    H02F:6,700cphH02:5,500 cph
    H01:4,200 cphH02F:6,700cph
    G04:7,500 cphH01:4,200 cph
    G04F:7,500 cphG04:7,500 cph
    GL:16,363 dph(0.22sec/dot)G04F:7,500 cph
    GL:16,363 dph(0.22sec/dot)OF:3,000 cph
    ComponentH24:03015～5mm×5mmHeight:Max2.0mm
    V12/H12HS:0402～7.5mm×7.5mmHeight:Max3.0mm
    H08M:0603～45mm×45mmHeight:Max13.0mm
    H08:0402～12mm×12mmHeight:Max6.5mm
    H04:1608～38mm×38mmHeight:Max9.5mm
    H04S/H04SF:1608～38mm×38mmHeight:Max6.5mm
    H02/H02F/H01/0F:1608～74mm×74mm(32mm×180mm)Height:Max25.4mm
    G04/G04F:0402～15mm×15mHeight:Max6.5mm
    Component supply device
    Intelligent feederAccording to 4･8･12･16･24･32･44･56･72･88･104 mm width.
    Tubular feeder４≦width≦15mm(6≦width≦18mm), 15≦width≦32mm(18≦width≦36mm)
    Tray FeederTray size 135.9 × 322.6mm(JEDEC)(-M), 276×330 mm (Tray size LT), 143×330 mm (Tray size-LTC)
    Machien sizeL:1295mm(M3 III×4, M6 III×2) / 645mm(M3 III×2, M6 III)
    Weight:W:1900.2mm H:1476mm

    FAQ


    Q: What we can do for you?
    A: Total SMT Machines and Solution, professional Technical Support and Service.

    Q:Are you a trade company or a manufacturer?
    A: OEM & ODM service are available.

    Q: What is your delivery date?
    A: The delivery date is about 35 days after receipt of payment.

    Q: What is your payment terms?
    A: 30% deposit in advance and 70% balance before shipment.
    Q: Why choose us?
    A: Leading SMT Supplier in China; Trade assurance to USD 560,000+; Professional after-sales service team.

    Global Service:

    1. We Provide Full SMT Solution for You

    2. We Provide Core Technology With Our Equipments

    3. We Provide The Most Professional Tech Service

    4. We Have Wealthy Experience on SMT Factory Setup

    5. We Can Solve Any Question About SMT
