Multifunctional Modular FUJI Pick And Place Machine NXT M6Ⅲ

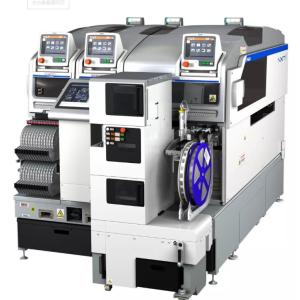

FUJI Pick and place NXT M6Ⅲ

Product Description:

The NXT M6Ⅲ is a highly productive, multifunctional modular pick and place machine. It is designed for speed and features a faster XY robot and Feeder. The NXT M6Ⅲ supports smallest parts used in mass production with extreme placement accuracy.

1. Operators can easily replace the heads

The original compact, lightweight heads from Fuji can be easily exchanged without tools due to this operators on site can carry out maintenance work.

2. The machine automatically performs a calibration after the heads have been replaced

After replacing the head, the operator simply presses the START button. The machine automatically performs a calibration for the head and starts the production.

3. Reconfigure the machine according to the purpose

Modules, heads and supply units can be easily exchanged according to part types and production needs. This is a unique mechanism that maximizes production on the given floor space.

4. Increase the efficiency of production lines at minimum cost

Increase the capacity in minimum units of 645 mm and support latest placement processes by adding different units. The costs can be reduced considerably, as no new machines have to be added.

5. Increase efficiency with simple material flow

Single-sided operation rationalizes and optimizes the material flow, this is reducing the workload on the operator and increases the efficiency of material supply. Dies erhöht die Effizienz bei der Materialversorgung und bei der Durchführung von Wartungsarbeiten.

Equipment parameter:

M3 III	M6 III
PCB SIZE(L *W)	48mm×48mm～250mm×510mm(Dual lane)	48mm×48mm～534mm×510mm(Dual lane)
	48mm×48mm～250mm×610mm(Single lane)	48mm×48mm～534mm×610mm(Single lane)
	※The maximum is 280 mm for dual lane handling (W), and the maximum is 280 mm for single lane handling	※The maximum is 280 mm for dual lane handling (W), and the maximum is 280 mm for single lane handling
Component type	MAX20 type (8mm)	MAX45 type(8mm)
PCB loading time	Dual lane transport : O sec during continuous operation, dual lane transport: 2.5 sec (transport between modules of M3 III), 3.4 sec (transport between modules of M6 III)
(Precision)	H24:±0.025mm (3σ) cpk≧1.00	H24:±0.025mm (3σ) cpk≧1.00
※Test result.	V12/H12HS:±0.038(±0.050) mm (3σ) cpk≧1.00	V12/H12HS:±0.038(±0.050) mm (3σ) cpk≧1.00
	H04S/H04SF:±0.040mm (3σ) cpk≧1.00	H08M/H04S/H04SF:±0.040mm (3σ) cpk≧1.00
	H08/H04:±0.050mm (3σ) cpk≧1.00	H08/H04/OF:±0.050mm (3σ) cpk≧1.00
	H02/H01/G04:±0.030mm (3σ) cpk≧1.00	H02/H01/G04:±0.030mm (3σ) cpk≧1.00
	H02F/G04F:±0.025mm (3σ) cpk≧1.00	H02F/G04F:±0.025mm (3σ) cpk≧1.00
	GL:±0.100mm (3σ) cpk≧1.00	GL:±0.100mm (3σ) cpk≧1.00
Capacity	H24:35,000 cph & 43,000 cph	H24:35,000 cph & 43,000 cph
※Test results	V12:26,000 cph	V12:26,000 cph
	H12HS:24,500 cph	H12HS:24,500 cph
	H08:11,500 cph	H08M:13,000 cph
	H04:6,500 cph	H08:11,500 cph
	H04S:9,500 cph	H04:6,500 cph
	H04SF:10,500 cph	H04S:9,500 cph
	H02:5,500cph	H04SF:10,500 cph
	H02F:6,700cph	H02:5,500 cph
	H01:4,200 cph	H02F:6,700cph
	G04:7,500 cph	H01:4,200 cph
	G04F:7,500 cph	G04:7,500 cph
	GL:16,363 dph(0.22sec/dot)	G04F:7,500 cph
	GL:16,363 dph(0.22sec/dot)	OF:3,000 cph
Component	H24:03015～5mm×5mm	Height:Max2.0mm
	V12/H12HS:0402～7.5mm×7.5mm	Height:Max3.0mm
	H08M:0603～45mm×45mm	Height:Max13.0mm
	H08:0402～12mm×12mm	Height:Max6.5mm
	H04:1608～38mm×38mm	Height:Max9.5mm
	H04S/H04SF:1608～38mm×38mm	Height:Max6.5mm
	H02/H02F/H01/0F:1608～74mm×74mm(32mm×180mm)	Height:Max25.4mm
	G04/G04F:0402～15mm×15m	Height:Max6.5mm
Component supply device
Intelligent feeder	According to 4･8･12･16･24･32･44･56･72･88･104 mm width.
Tubular feeder	４≦width≦15mm(6≦width≦18mm), 15≦width≦32mm(18≦width≦36mm)
Tray Feeder	Tray size 135.9 × 322.6mm(JEDEC)(-M), 276×330 mm (Tray size LT), 143×330 mm (Tray size-LTC)
Machine size	L:1295mm(M3 III×4, M6 III×2) / 645mm(M3 III×2, M6 III)
Weight:	W:1900.2mm H:1476mm
